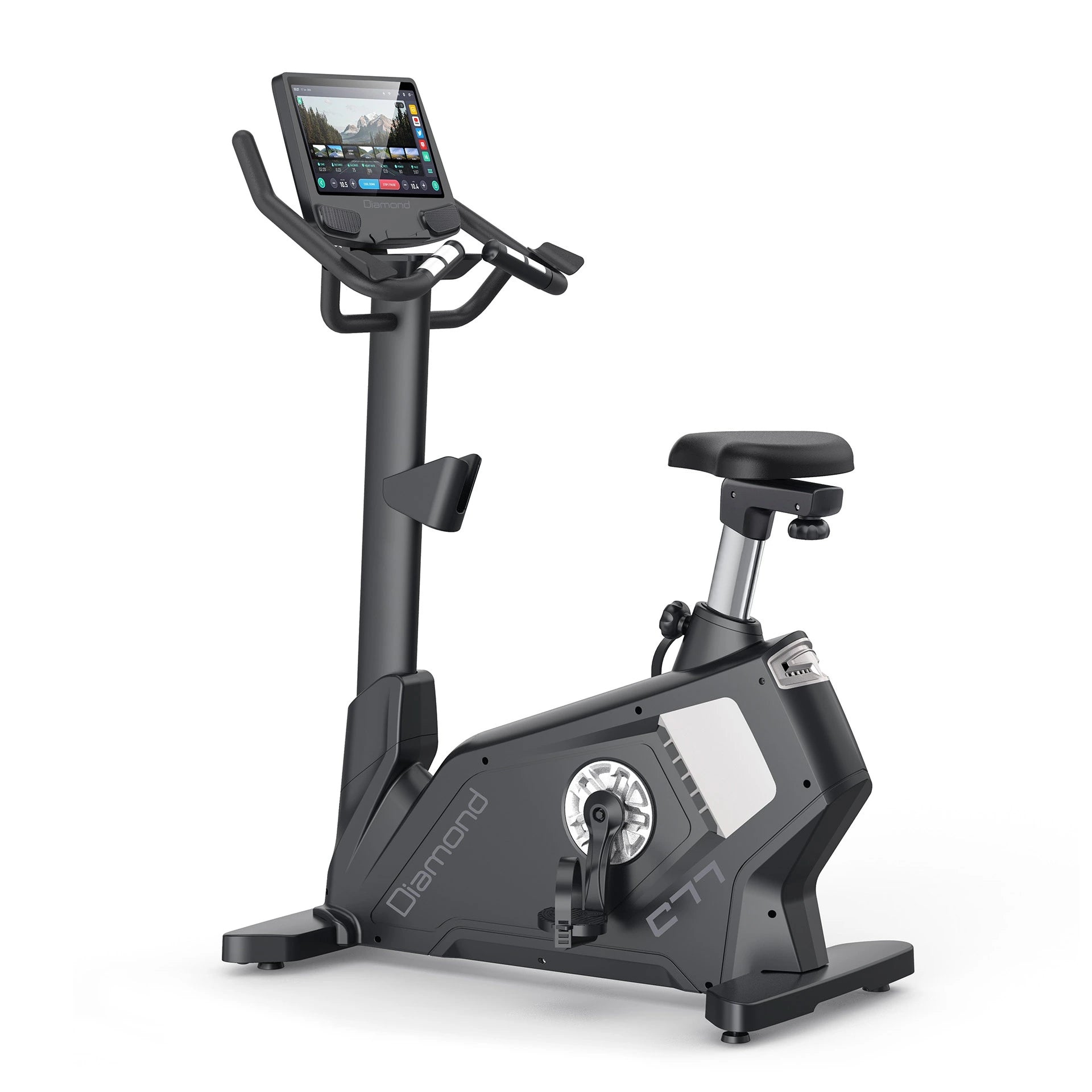

C77 is the top of the line by Diamond that combines a sporty design with quality mechanics and advanced technology to provide a top-level training experience. A true ergometer that, thanks to the EMS (induction) brake, allows for extremely smooth and consistent pedaling at all paces at all times. The anatomical seat with graduated compression padding and the solid frame, allow people up to 150 kg on board, always finding the correct position to ensure maximum comfort. The bike is equipped with a modern console with a 15.6″ TFT touch screen, with integrated Wi-Fi connection to keep every user, even the smartest one, entertained to the fullest! TheC77 by Diamondergometer is a perfect blend of excellent performance, multimedia and maximum comfort. With its sleek design and built-in multimedia, it will offer the experience of engaging and motivating workouts to reach your personalized goal. The new C77 bike is the ideal partner to evolve the way you train!

• Item No.C77
• Braking systemMagnetic induction resistance system (EMS) with electronic adjustment
• Inertia adjustment32 levels of electronically managed resistance - max power 450 W
• Flywheel mass19 kg
• TransmissionWith silenced belt
• Bottom bracket3-piece / crank 17.5 cm

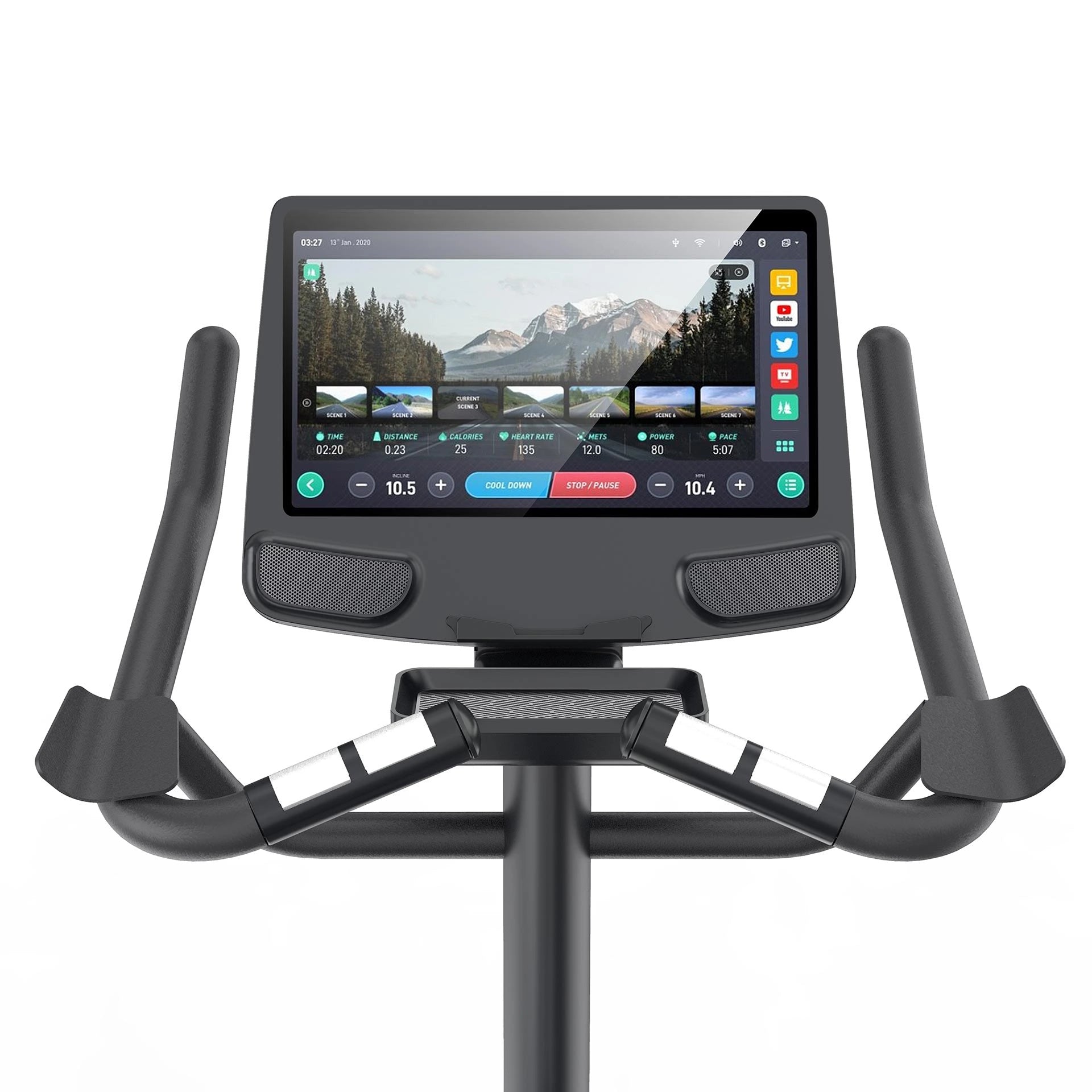

• Screen15.6" TFT touch screen
• ViewTime / Distance / Speed / Calories / Heart Rate / Watts / Effort Level / Program Profile.
• ProgramsManual (32 levels) / 12 preset (32 levels) / Intervals / 4 HRC / 1 Watt / Landscape mode / 4 customizable and storable
• Power supplyPower supply with external cable 26V
• Heart rate detectionHand pulse + integrated wireless heart rate monitor receiver
• Cardio bandStandard wireless
• HandlebarsErgonomic multi-grip with elbow support
• SaddleAnatomical with vertically adjustable graduated compression padding
• PedalsNon-slip with shoe-strap fasteners
• AccessoriesWifi connection + pre-installed Apps (Chrome, Netflix*, Spotify*, Facebook, Amazon Video*, YouTube, Twitter, Kinomap*, Instagram, Cast Screen) / smartphone wireless charging / built-in wireless heart rate monitor module / Hi-Fi audio speakers / wireless earphone output / bottle holder / smartphone and tablet support. * subscription not included.
• Transport wheelsYes
• Saddle-pedal distanceMin. 35 cm - Max 101 cm
• Handlebar-to-saddle distanceMin. 36 cm - Max 45 cm
• Max user flow rate150 kg
• Dimensions113 x 59 cm H 158 cm
• Packaging dimensions126.5 x 38 x 76.5 cm
• Net weight55 kg
• Gross weight65 kg
• CertificationsCE, RoHS, EN957
• Warranty1 year for professional use


  TECHNICAL DATA SHEET
